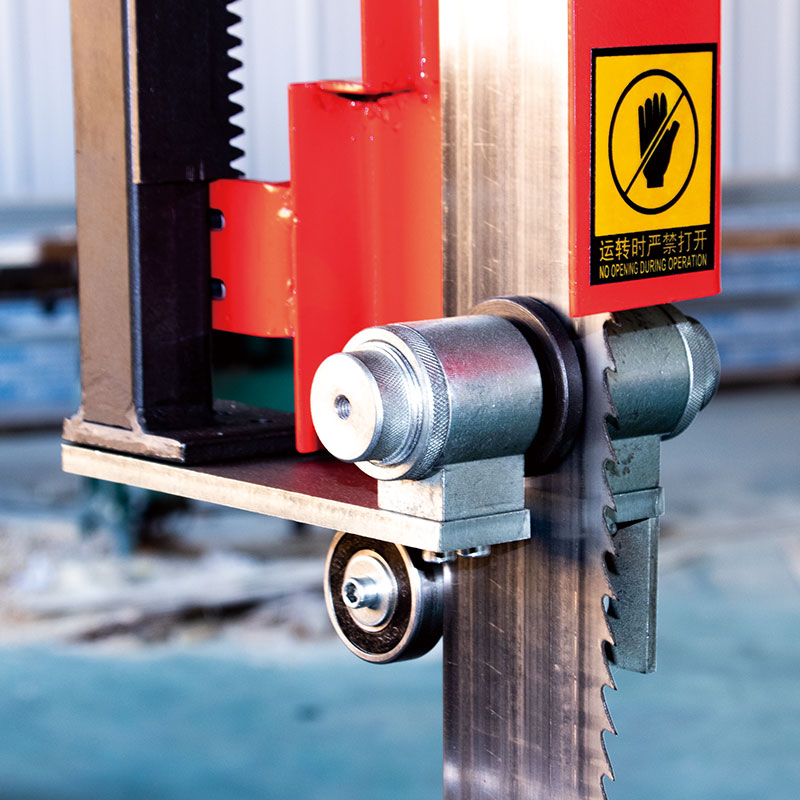

重型鋸卡結構，導向桿齒條升降 Saw blade guide post elevating adoptsrack and pinion structure.
|

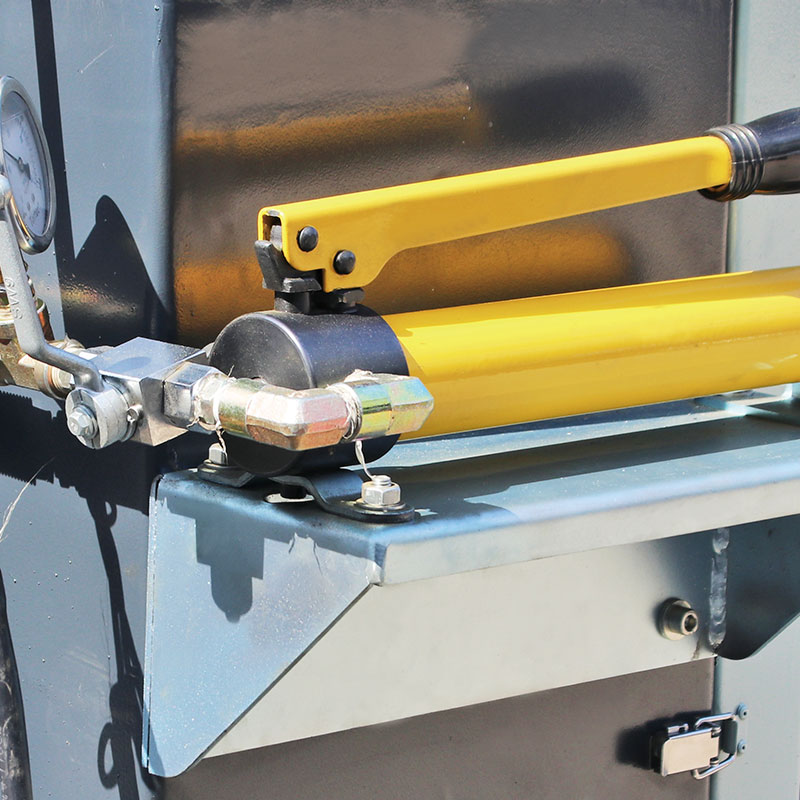

液壓式鋸條漲緊結構，保證穩(wěn)定性 In order to achieve stable tension performance,adopts hydraulic type blade tension structure. |

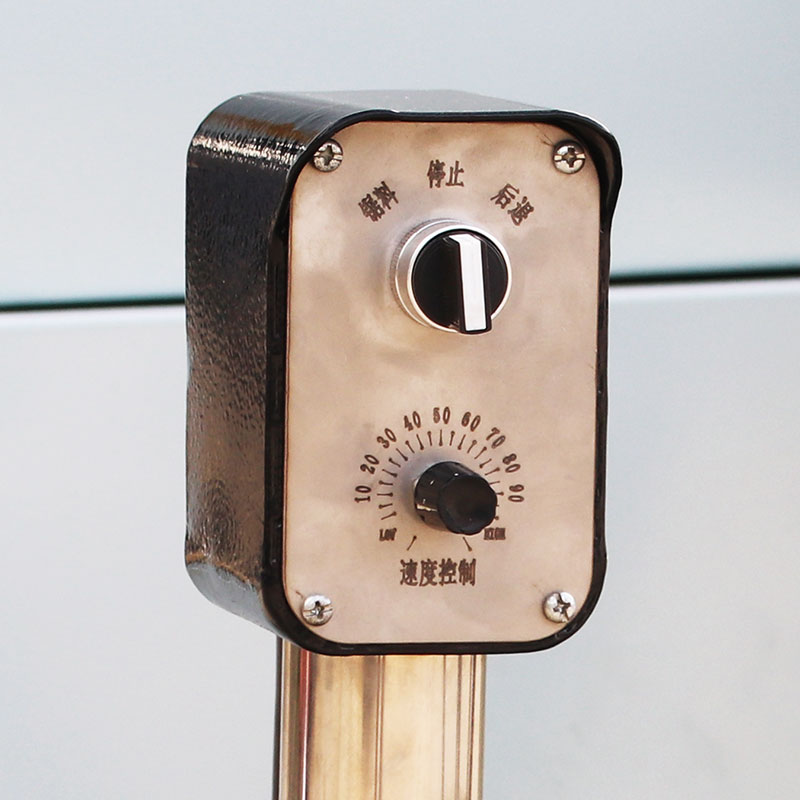

送料速度采用變頻調速 Max. feeding speed will be 18m/min, the machineadopts VF feeding speed adjustment. |
機械特性 FEATURES
重型機身設計，鋸體采用四生鐵輪結構;
配合適當?shù)匿彈l，可以用于切割實木，海綿和石墨等材質;
鋸臺為滑臺式，采用高品質軸承和圓棒，保證行走的流暢度;
工件的進給速度為變頻調速，保證鋸切效果;
鋸條漲緊采用液壓漲緊，保證鋸切的穩(wěn)定性和耐久度;
Solid body frame design, to enhance the stability,
the machine come with 4 pieces cast iron fly-wheels;
Can process the solid wood, foam and graphite etc, if come with the suitable saw blades;
Adopts sliding type working table, with quality bearing and round bar, to achieve smoothlycutting performance;
Adopts hydraulic saw blade tension structure, to ensure the stability, also entend the usinglife of saw blade.
主要技術參數(shù) SPECIFICATION
|
型號 MODEL |
MJDT4976 |
|
最大鋸料厚度 Max. cutting thickness (mm) |
1000 |
|
最大鋸切喉深 Max. cutting throat(mm) |
1220 |
|
鋸條線速度 Linear speed of saw blade (m/s) |
18 |
|
鋸輪轉速 Rotating speed of fly wheel (RPM) |
500 |
|
鋸輪尺寸 Size of fly wheel (mm) |
Ø600*2, Ø700*2, width: 80mm |
|
鋸條尺寸 Size of the saw blade (mm) |
7810*70 |
|
鋸條漲緊力 Tension stress of saw blade (Mpa) |
15 |
|
推臺寬度 Width of sliding table (mm) |
2000 |
|
推臺長度 Lenght of sliding table (mm) |
2730 |
|
推臺行程 Stroke of sliding table (mm) |
2500 |
|
送料速度 Feeding speed (m/min) |
0-18 |
|
鋸切電機功率 Motor power of cutting (KW) |
7.5 |
|
送料電機功率 Motor power of feeding (KW) |
1.5 |
|
外形尺寸 Overall dimension (mm) |
5040*2880*2850 |
|
重量 Weight (KGS) |
1500 |
